Allen & Heath DX168/X Audio Rack

The DX168 is a rugged, portable expander for adding remote I/O to a dLive S Class or dLive C Class system. Each DX168 features 16-microphone preamps with independent Phantom Power LED indicators and 8 XLR line outputs. Up to 6 DX168 units can be connected to a dLive system - 4 via the MixRack and 2 via the Surface - allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and the Surface. The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack or upstream DX168 via a secure EtherCon port. A second blocking EtherCon port is provided for redundant connection with compatible hardware or for daisy-chaining with a downstream DX168 for additional remote I/Os. The robust design of the expander, with its durable rubber buffers, allows it to be placed directly on the stage floor during performances. Weighing just 4.8kg and with a rugged carrying handle, the DX168 provides the comfort and portability required for rental, education, worship and many other environments.

Features:

• 16 XLR microphone preamps with Phantom Power Status LEDs
• 8 XLR Line-Outs
• Compatible with dLive S Class and dLive C Class hardware
• Up to 6 DX168 units can be added to a dLive system for 96 inputs / 48 outputs.
• Cascade mode allows concatenation of 2 DX168 expanders for additional I/Os (requires firmware 1.60 or higher).
• Redundant DX connection to dLive S Class hardware
• Optional 19-inch rack mount kit available
• Plug and Play - no IP addressing required
• Compatible with CAT5e (or higher) cables up to 100m in length

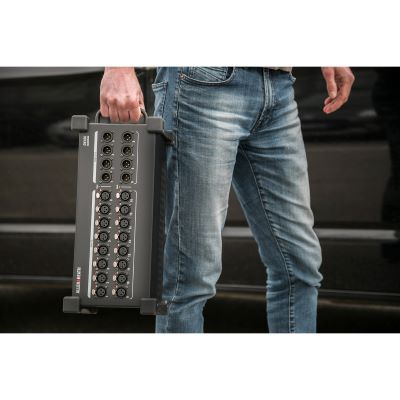

• rubber buffer
• carrying handle

Specs:

• Port A: 16 x XLR Female
• Port B: 8 x XLR male
• Usage: stagebox
• Inputs: 16
• Type: Accessories
• Theme: PA and Sonication
