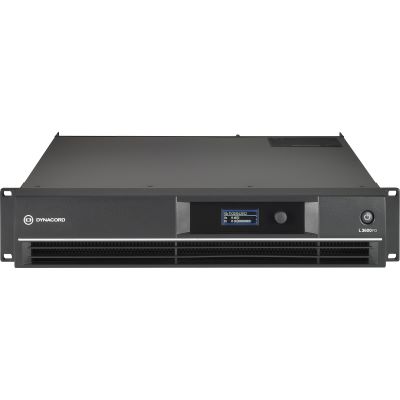

Dynacord L3600FD DSP

The Dynacord L3600FD DSP is a live performance DSP amplifier 2 x 1800W. It contains fully integrated professional speakers, processed with FIR Drive technology. It features market-leading acoustic performance and solid construction, making it highly reliable.

• Live Performance DSP Amplifier
• Fully integrated professional speakers processed with FIR Drive technology
• Market-leading acoustic performance, solid construction and reliability.
• True 2 Ohm stability
• Intuitive system control software, simplifies configuration and control
• Maximum output power: bridged 4Ω= 6000W; 8Ω= 3400W
• Maximum effective voltage: Swing, THD = 1%, 1kHz 90.6V
• Voltage gain ref.: 1kHz 32.0dB
• IMD-SMPTE: 60 Hz, 7 kHz <0.1%.
• DIM: 30 <0.05% (3.15 kHz, 15 kHz)
• Maximum input level: +21dBu
• Crosstalk: < -80dB (ref 1 kHz, at 100 W/4 Ω)
• Frequency range: 10 Hz to 21 kHz (±1 dB)
• Input impedance: active balanced 20kΩ
• Signal-to-noise ratio: (A-weighted) >109dB
• Output noise: A-weighted <-68dBu
• Final stage topology: Class H
• Power supply: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
• Power consumption: 850 W (⅛ Maximum output power @4Ω)
• Protection Audio limiter: high temperature, DC, HF; back EMF, peak current limiter, inrush current: limiter, on delay
• Cooling from front to rear: 3-stage fans
• Protection class I
• Color: Black
• Height: 88mm (3.46")
• Width: 483mm (19.02")
• Depth: 462.4mm (18.2")
• Net weight: 18.2kg
• Signal processing: FIR filter, audio limiter; output delay per channel; 31 band GEQ per channel: PEQ per channel; load impedance
• Mains fuse: 240 V/230 V= T10AH; 120 V/100 V= T20AH
• Operating temperature range: +5°C to +40°C (40°F to +105°F)
• Distortion factor: <0.05% (1200 W/4 Ω MBW = 80 kHz, 1 kHz)

Specs:

• Color: Black
• Set Offer: no
• Channels: 2
• Fanless: no
• Bridge operation: yes
• Output power into 4 ohms: 1700 W
• Output power into 8 ohms: 900 W
• digital power amplifier: yes
• Type: Amps
• Theme: PA and Sonication
