EUROLITE LED KLS Scan Pro Next FX Kompakt-Lichtset

Everything in a compact light set: basic light, effects and scanner.

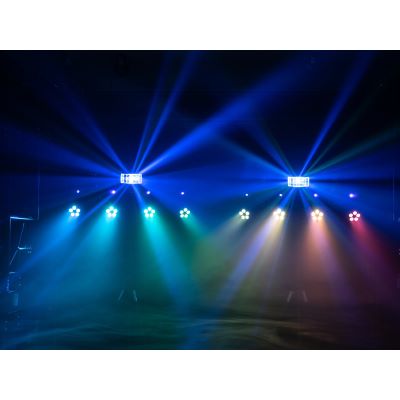

The LED KLS Scan Next FX is equipped with 4 spots for the colored basic lighting, UV LEDs for the popular black light effect and a derby effect for the party atmosphere. But the special feature of this bar is the equipment with two integrated scanners incl. gobo wheel and color wheel. The two scanners are each equipped with a very effective 15-watt LED.

Control via standalone, remote control and foot bar

The control options of the KLS offer something for every user: even without an external controller, 20 different programs can be set, which run either automatically or music-controlled. These programs offer sophisticated, finely color-coordinated shows. The various programs can be called up and colorful moods created via the infrared remote control supplied. Control via an optional baseboard is also possible.

Different DMX MODI

There are ten different DMX modes: In the smallest mode with three channels, the automatic and music-controlled programs can be called up and switched. The largest mode with 39 channels allows full control of each fixture, the derby and the scanners. In some modes, the two scanners are controlled together. In the menu, it is then possible to set that one or both axes of movement should be inverted, i.e. mirrored. This facilitates the control and results in a coherent picture.

Wireless DMX

The KLS has a USB socket for QuickDMX. An optional DMX wireless adapter can be plugged into this to realize wireless DMX transmission. This works not only from one console to the KLS bars, but also among each other for master-slave operation when using multiple KLSs.

Features:

• EUROLITE - LED KLS Scan Pro Next FX compact light set.
• Compact bar with derby, spots, scanners, UV effect, QuickDMX socket and bag
• Absolute lightweight best suited for mobile use
• Crossbar with integrated DMX control unit and TV spigot for tripod mounting
• Many different DMX modes for different consoles and requirements
• LED derby and LED spots individually alignable and controllable
• Mirror movement for both scanners separately invertible (e.g. for common, counter-rotating control)
• Newly designed software with attractive programs
• When using fog, this effect is particularly effective
• Mains input and output for easy interconnection of up to 8 units
• Positioning within PAN and TILT
• 20 integrated show programs
• Operable in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH DMX mode
• Cooling of fixtures via fan
• Controllable via DMX; IR remote control; music control via microphone; stand-alone; master/slave function; radio foot switch (optional); QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Already pre-programmed with Light Captain; EASY SHOW 2; EASY SHOW 3; Light'J
• With a 15° beam angle
• TV spigot
• With mounting bracket
• OLED display
• For application areas such as: Wedding/Gala/Events; Rental companies; Small rental companies.
• Spotlight: 3 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogeneous color mixing)
• Lighting effect: 2 high-power LEDs 3 W R/G/B
• Movinglight: 1 high-power LED 15 W cool white (CW)
• Bar: 4 powerful LEDs 1 W high-power ultraviolet (UV)
