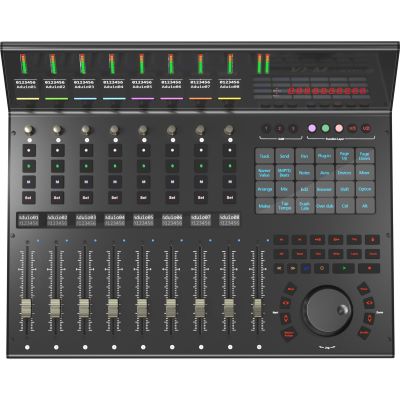

Icon V1-M

The V1-M is a powerful DAW controller that gives you tactile control of your digital audio workstation, helping you optimize your workflow and finish your projects faster. Below are some of the features that will make the V1-M work for you:

Hands On Control: the V1-M has 8 channels of motorized faders that can be expanded up to 64 channels with the optional V1-X DAW Control Expanders (depending on your DAW). This gives you complete control over your mix, even when working on a complex project.

Customizable touchscreen: The V1-M features a large, customizable touchscreen display with 5 color-coded command layers that can be used to control your DAW and match your specific workflow. This makes it easy to quickly access the controls you need without having to take your eyes off the mix.

OLED display and meter bridge: The large OLED display and meter bridge show current levels, pan positions and other information. This makes it easy to see what's going on in your mix, even when you're not looking at the computer monitor.

Integration with popular DAWs: The V1-M is compatible with a wide range of popular DAWs, including Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live and Pro Tools. You can also run up to 3 DAWs simultaneously without interrupting your workflow.

Recording and mixing

The V1-M's motorized faders and touchscreen display make it easy to navigate large sessions. You can quickly zoom in and out of the session, and you can easily see the level and pan positions of your tracks with the large OLED display and metering bridge. So you can use your ears and not your mouse when recording and mixing.

Content creation

Use the faders, knobs, buttons and touchscreen to adjust the levels, pan positions and other parameters of your tracks. Customizable controls mean you can place the most commonly used commands exactly where you need them to create engaging content quickly and efficiently.

Music production

The V1-M lets you stay creative. The touchscreen display and motorized faders give you a tactile experience that can help you feel connected to your music. With the V1-M's customizable controls, you can set up your controller the way that works best for you.

Post-production and sound design

The V1-M is expandable and flexible. Depending on your DAW, you can add up to 64 channels to your setup. This can be especially helpful if you're working on a complex project with many dialog tracks or foley sounds, or if you're designing lush soundscapes or creating new worlds.

Features:

• Icon - V1-M
• 9x touch-sensitive motorized faders with 12-bit resolution
• Large, programmable 7-inch digital touchscreen display with 24 fields showing DAW functions in 5 color modes - a total of 120 displayable and activatable functions
• Organize DAW functions on the 24-panel touchscreen simply by dragging and dropping in iMAPTM - changes are made in real time
• Ability to connect to 3 DAWs simultaneously via the DAW selection buttons
• Extremely durable, long-lasting and versatile
• Integrated 2-inch TFT display to show channel names, knob values, channel colors, etc. (DAW-dependent)
• Attractive, modern meter bridge with precise, clear and eye-catching LED displays
• Additional lower 1.14-inch TFT display for each channel (some DAWs are equipped to display additional information on this screen)
• Extremely high quality, large optical encoder jog wheel with very precise, smooth control for fast searching, scrubbing etc.
• 8 smooth-running dual-function rotary knobs (Rotate and Enter)
• 2-segment LED display to show the timecode or position of your project in SMPTE or beat clock format (bars:beats:ticks)
• Illuminated function buttons for 'Read', 'Write', 'Touch', 'Latch', 'Trim'; and 'Off' - activated/deactivated as required in the DAW
• Illuminated buttons for channel control including mute, solo and record
• 6 illuminated transport buttons including Play, Stop, Record, Rewind, Fast Forward and Loop
• Dedicated 'Master/Assign' button to quickly switch the master fader from the master channel to a predetermined track
• Illuminated "Focus" button that allows the user to "focus" and adjust plug-ins, EQ parameters etc. via the smooth-running jog wheel
• Illuminated "Zoom" button with 2 directional buttons (left/right & up/down), which is also used in combination with the jog wheel
• 2 illuminated "Track" buttons for selecting individual channels
• 2 illuminated "Bank" buttons for simultaneous switching of 8 channels
• Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
• Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
• iMapTM software can be downloaded from the product page
• USB-C high-speed connection
• Firmware upgrade available via USB-C connection and iMapTM software
• User A & User B 1/4-inch inputs for connecting footswitch pedals
• Class compatible with MacOS 10.15 or higher and Windows 10 or higher
• Excellent build quality and robust metal housing with Kensington Lock connection
• Connection to the computer: USB port (standard type)
• Power supply: 12V2.5A DC (external negative internal positive)
• Power consumption: 2.5A or less
• Weight: 5.6kg (12.3lb)
• Dimensions: 485(W) x384.5(D) x 178(H)mm

Specs:

• Color: Black
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Host Port: USB
• Jogwheel: yes
• Type: DAW Controller
• Theme: Recording and Studio
