SET Neumann KH 80 DSP Paar + KH 750 Sub Set

Name: Neumann KH 80 DSP Paar + KH 750 Sub Set
Brand: Neumann
SKU: SET106202
Price: 2399.00 EUR
Availability: OutOfStock

Neumann KH 80 DSP Paar + KH 750 Sub Set Thumbnail 1

Neumann KH 750 DSP Subwoofer Thumbnail 12

Neumann KH 750 DSP Subwoofer Thumbnail 13

Neumann KH 750 DSP Subwoofer Thumbnail 14

Neumann KH 750 DSP Subwoofer Thumbnail 15

Neumann KH 750 DSP Subwoofer Thumbnail 16

KORN Kabel Premium Mikrofonkabel XLR / XLR 3m Thumbnail 17

KORN Kabel Premium Mikrofonkabel XLR / XLR 3m Thumbnail 18

EUR 2,399.00

SET Savings: 297.80 EUR compared to single purchase

or finance here

incl. VAT incl.

will be ordered for you
Delivery time: 3 ‐ 10 business days (Germany)

Check availability in store:

Dresden: currently unavailable
Leipzig Connewitz: currently unavailable
Pick Up Point Oschatz: currently unavailable

Brand:

Neumann

Model:

SET106202

Shipping Weight:

30.20 kg

Shipped via:

Package

Unit:

piece

Secure Shopping:

Trusted Shops certified
Fast delivery times
1 month right of withdrawal
Buyer protection
Secure SSL data encryption

Share with friends:

Neumann KH 80 DSP Paar + KH 750 Sub Set Product Details

1x Neumann KH 750 DSP Subwoofer

Model: 266060

will be ordered for you

(2)

Features:

Easy to install, compact subwoofer with very low bass response
DSP engine optimizes sound output to reference class
Neumann.Control app for iPads® for configuration, adjustment and operation in one system
THD+N: analog, digital: < -100 dB; < -90 dB
Free-field frequency response ±6 dB: 16 ... 800 Hz
Free-field frequency response ±3 dB: 18 ... 750 Hz
Noise at 10 cm distance (at input gain of 100 dB SPL for 0 dBu): <20 dB(A) SPL
Sine wave reproduction with THD < 0.5 % in 1 m in half space: 95 dB SPL (>70 Hz)
Bass capability: Maximum sound pressure level in half space at 3% THD in 1 m (averaged between 50 Hz and 100 Hz): 105.0 dB SPL
Analog inputs: 2 x XLR: analog, electronically balanced
Analog input impedance: >13k Ohm
Max. Input level: < +24 dBu
Common mode rejection (CMRR): > 56 dB @ 15 kHz
Crosstalk attenuation between channels (1 kHz / same level): < -90 dB; ±0.1 dB
Volume control: via Neumann.Control software
Volume control range; resolution: 0 ... -∞ dB; 0.1 dB
Analog dynamic range; THD+N: 119 dB(A); <0.003% (-90 dB)
Subwoofer Modes: Right; External Bass Management; 2 x LFE
Analog outputs: 2 x XLR; analog; electronically balanced
Input gain control (sensitivity): +2 ... -12 dB
Output level switch (output level in 1 m relative to 0 dBu input level): 94; 100; 108; 114 dB SPL
Digital inputs: BNC (75 Ω): AES3; S/P-DIF
Digital output: BNC (75 Ω): AES3
Digital converter: Resolution; Technique: 16 ... 24-bit DAC; Δ∑
Digital converter: Sampling rate: 48 kHz
Dynamic range A-D-A: >120 dB(A)
Dynamic range D-A: >123 dB(A)
Digital sensitivity: -18 dBFS = 100 dB SPL at 1 m
Latency: 1.5 ms (A-D-A linear phase); 1.2 ms (D-A linear phase)
Delay: Setting range: 0 ... 100 ms and 2 x 0 ... 20.8 ms
Delay: Resolution: time; distance: 0.1 ms; 3.44 cm
Delay: Max. Frames Audio video synchronization (lip sync): 2.5 (40 ms) frames; 3 (33 ms) frames
Delay: max. distance delay: 2 x 7.16 m
Controller technology: Digital; active
Crossover frequency: 80 Hz fixed or 60 ... 100 Hz via Neumann.Control
Crossover slope: 24 dB/oct; 4th order
Phase: 0; 45; 90; 135 and 0/180 degree
Acoustic controller: via Neumann.Control app: 8 x fully parametric IIR filters + globally acting low/high shelf filters
FIR Phase correction: for the connected analog speakers: linear phase (170 Hz ... 16 kHz; +/- 45°)
Protection circuit: driver (thermal limiter); electronics (temperature limiter); amplifier (peak limiter, temperature limiter, temperature protection and overvoltage protection); power supply (temperature limiter and overvoltage protection)
Infrasound filter: frequency; slope: 6.5 Hz; 12 dB/oct.
Remote control: Neumann.Control software via RJ45 connector with standard IP data
Display: On, Normal operation: Green LED
Display: Identification: Amber LED
Display: Limit / Clip / Error / Protective circuit / Power on mute / Power off mute: Red LED
Display: Bass management active: Green LED
Output power bass amplifier (THD+N with deactivated limiter: 10%): 256 W
Power supply: Input voltage; -frequency: 100-240V; 50/60 Hz
Power consumption (230 V / 100 V): Standby: <300 mW
Power consumption (230 V / 100 V): Idling: 18 W
Power consumption (230 V / 100 V): Full output power: 410 W
Inrush current (peak): 30 A @230 VAC
Standby (idle state): deactivated; 90 min. (default setting); adjustable via software
Housing material: wooden housing, aluminium electronics rear side
Housing surface; -colour (front / rear): lacquered; anthracite-metallic (RAL 7021) / black (RAL 9005)
Operating conditions: +10° C to +40° C, <90% RF; non-condensing
Transport / storage conditions: -25° C to +70° C; <90% RF; non-condensing
Woofer: 265 mm (10") with black metal grille cover
Product dimensions (H x W x D): 383 x 330 x 383 mm
External net volume: 48.4 litres
weight: 19,5 kg

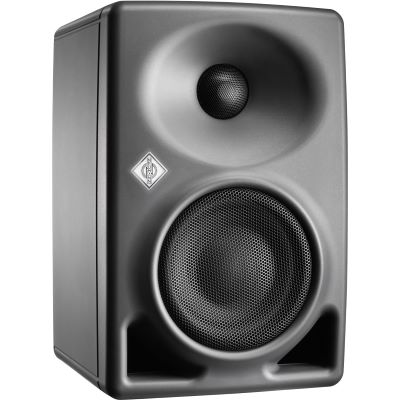

2x Neumann KH 80 DSP

Model: 255044

will be ordered for you

(3)

Features:

active DSP studio monitor
new, in-house simulated driver with metal grilles
Powerful metal alloy-fabric high-frequency dome
elliptical Mathematically Modeled Dispersion™ (MMD™) Waveguide with wide horizontal and narrow vertical radiation
Long-stroke base driver with resonance-optimized diaphragm design and powerful ELFF ™ drive (Extremely Linear ForceFactor ™)
Neumann logo, double-colored, dimmable
Compact polycarbonate composite housing
Large front-sided bass reflex channels
Homogeneous baffle without edges
Powerful, completely newly developed amplifiers with high efficiency and large headroom
Independent thermal limiter for woofers and tweeters to protect the oscillating coils and power amplifiers, soft clip limiter to protect the speakers from excessive deflection as well as temperature monitoring of the electronics
High manufacturing consistency and minimal dispersion due to individual adjustment during final inspection
4-stage acoustic controller for the low-mid range
8 x Precision Alignment filter, access via control network
Lipsync-Delay (0 ... 70 ms)
Runtime delay (0 ... 70 ms)
Linear phase crossover with bypass
Flexible input/output level controls
Control network with standard ethernet connection
Symmetrical internal signal processing
Universal switching power supply (100 to 240 V)
Extensive hardware options (sold separately)
