Tascam Portacapture X8

Tascam Portacapture X8: The high-resolution PCM recorder for every application

The Tascam Portacapture X8 sets new standards in audio recording and editing. With a large 3.5-inch color touchscreen, intuitive operation and outstanding sound quality, this recorder enables professional recording in a variety of scenarios. Whether for podcasts, music, interviews or video productions - the Portacapture X8 offers flexible functions and the highest audio quality. With presets for typical application scenarios and powerful 32-bit floating point recording technology, this device is ideal for beginners and professionals alike.

Tascam: Pioneer in audio technology

Tascam is known for its pioneering innovations in the audio world. The Portacapture X8 is an example of Tascam's commitment to combining professional recording equipment with user-friendly operation. This model is aimed at creatives who value quality and versatility, whether in the studio, on the road or recording live.

Technical highlights of the Portacapture X8

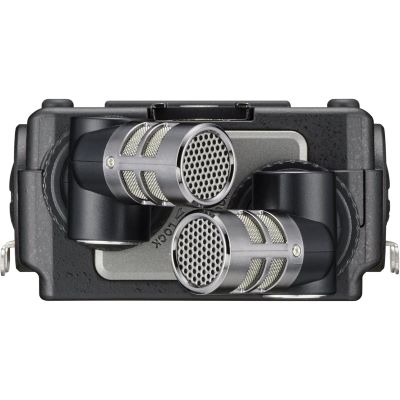

The Portacapture X8 has two detachable condenser microphones with a large 14.6 mm diaphragm, which can be mounted in AB or XY arrangement. These enable either a wide stereo field or clear reproduction with minimal phase shift. Thanks to the dual A/D converters and 32-bit floating point technology, the device achieves excellent sound quality without distortion even when recording at low levels. The integrated normalization function makes post-production much easier by automatically adjusting the level of the stereo mix.

With four professional XLR/TRS combo sockets and other connection options, the recorder is equipped for most recording requirements. It also supports multitrack recording with up to eight tracks (six inputs plus stereo mix) and can be used via USB as an audio interface with eight inputs and two outputs. Thanks to the support of phantom power for external microphones (24 V / 48 V) and a power supply via USB Power Delivery, the Portacapture X8 is extremely versatile.

Conclusion: A recorder for the highest demands

The Tascam Portacapture X8 is a powerful and versatile PCM recorder that is perfect for demanding audio recordings. Its intuitive operation, flexible connection options and exceptional sound quality make it an indispensable tool for creative professionals in any industry. Whether for music recording, film sound or live streaming - with the Portacapture X8 you are perfectly equipped.

Features:

• High-resolution PCM recorder with 32-bit floating point resolution and sampling rates up to 192 kHz
• 3.5-inch color touchscreen for intuitive operation and perfect readability
• Preset recording modes for multitrack recording, podcasts, music, speech, ASMR and more
• Two detachable condenser microphones (14.6 mm diaphragm) with AB and XY arrangement
• Four lockable XLR/TRS combo jacks for microphone and line signals
• Phantom power (24 V / 48 V) for external microphones
• Multitrack recording with up to eight tracks (six inputs + stereo mix)
• Built-in USB audio interface with eight inputs and two outputs
• Supports WAV (BWF) and MP3 recording formats
• Dual recording: simultaneous recording in different formats
• MS decoder and reverb effects (six rooms) integrated
• Auto-recording with threshold control
• Normalization function for stereo mixes after recording
• Intelligent noise gate, EQ, depth filter, limiter and compressor
• Camera/line input and output (3.5 mm stereo) with adjustable level
• Powerful headphone output for precise monitoring
• Optional wireless remote control via Bluetooth (with Tascam AK-BT1)
• Compatible with micro SD cards up to 512 GB
• Power supply via USB, batteries (4x AA) or optional mains adapter
• USB-C connection with plug-and-play function for live streaming
• Dimensions (W×H×D): 77 mm × 40 mm × 206 mm
• Weight: 472 g (including batteries)

Specs:

• Color: Black
• Line Inputs: 4
• Line Outputs: 0
• Mic Inputs: 4
• digital Input: USB
• digital Output: USB
• Fader: 0
• Effect Processor: yes
• Set Offer: no
• Headphone Out: yes
• Rack Mountable: no
• Type: Mobile Audio Recorder
• Theme: Recording and Studio
