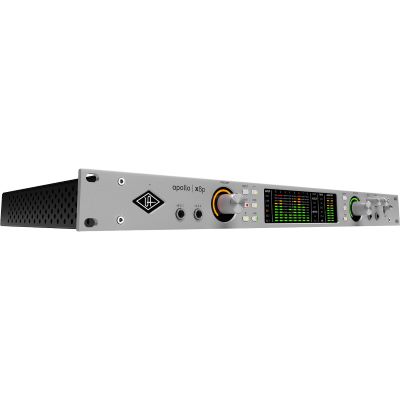

Universal Audio Apollo X8P Gen 2 Studio+

Universal Audio Apollo X8P Gen 2 Studio+: Professional Thunderbolt 3 audio interface

The Universal Audio Apollo X8P Gen 2 Studio+ is a state-of-the-art audio interface designed specifically for professional recording studios, post-production and demanding music projects. With its eight Unison microphone preamps, support for surround formats up to 7.1 and integrated real-time processing by the 6-core SHARC DSP processor, it meets the highest demands for sound quality and flexibility.

Universal Audio: Innovative audio technology for professionals

Universal Audio is known worldwide for its high-quality audio hardware that combines analog sound warmth with digital precision. The Apollo series is a permanent fixture in professional studios and offers a perfect combination of state-of-the-art technology and ease of use. The Apollo X8P Gen 2 Studio+ extends this tradition with features specifically tailored to the needs of demanding users.

Technical highlights of the Apollo X8P Gen 2 Studio+

The Apollo X8P Gen 2 Studio+ features 24-bit/192 kHz AD/DA converters for precise and detailed sound reproduction. With eight Unison microphone preamps, classic analog preamps can be authentically emulated. Thanks to the auto-gain function, +48 V phantom power, pad, low-cut and phase reverse, the interface offers versatile possibilities for recording and mixing.

Support for surround formats up to 7.1, including speaker calibration and downmix, makes the Apollo X8P particularly suitable for film and post-production applications. Dual Crystal Clocking guarantees low-jitter and artifact-free recordings with stable stereo imaging. With the ability to cascade up to four Apollo interfaces via Thunderbolt, it offers maximum flexibility for larger studio setups.

Studio+ Plugin Bundle: Unlimited creativity

The included Studio+ Plugin Bundle offers a wide range of high-quality UAD plugins that emulate legendary studio hardware such as compressors, equalizers and effects. These plugins run seamlessly on the integrated SHARC DSP processor, enabling real-time processing without burdening the computer.

Recommended purchase: Universal Audio Apollo X8P Gen 2 Studio+

The Universal Audio Apollo X8P Gen 2 Studio+ is the ideal choice for professional recording studios, musicians and producers who need a powerful and versatile audio interface. With its extensive functions, high-quality workmanship and the included plug-in bundle, it offers everything you need for outstanding audio productions. Whether studio recording, live tracking or surround mixing - this interface always delivers first-class results.

Features:

• 24-bit / 192 kHz AD/DA converter
• 6-core SHARC DSP for internal UAD real-time processing
• 8 Unison microphone preamps
• Auto-gain function
• +48 V phantom power
• Pad, low-cut and phase reverse
• Switch for monitor switching
• Dim or mono assignable function button
• LED meter
• Integrated talkback microphone
• Support for surround formats up to 7.1 with speaker calibration and downmix
• Dual Crystal Clocking for jitter-free and artifact-free recordings
• Studio+ plug-in bundle
• Cascadable with up to 4 Apollos via Thunderbolt
• Design: 19" / 1 U
• Dimensions: 483 x 308 x 44 mm
• Incl. external power supply
• 8 microphone/line combo inputs (XLR / 6.3 mm jack)
• 2 Hi-Z inputs (6.3 mm jack)
• 8 line inputs (Sub-D25)
• 2 monitor outputs (6.3 mm jack)
• 8 line outputs (Sub-D25)
• 2 ADAT inputs and outputs
• BNC word clock input and output
• 2 stereo headphone outputs (6.3 mm jack)
• 2 Thunderbolt 3 sockets
• Maximum sampling rate: 192 kHz
• Maximum resolution: 24 bit
• Bus-powered: No
• Compatible with Windows and Mac OS

Specs:

• Color: Silver
• Rack Mountable: yes
• Line Inputs: 8
• Line Outputs: 8
• Mic Inputs: 8
• Phono Inputs: 0
• Instrument Inputs: 2
• digital Output: ADAT / S/PDIF
• digital Input: ADAT / S/PDIF
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: Thunderbolt
• Number of headphone outputs: 2
• Type: Audio Interface
• Theme: Recording and Studio
