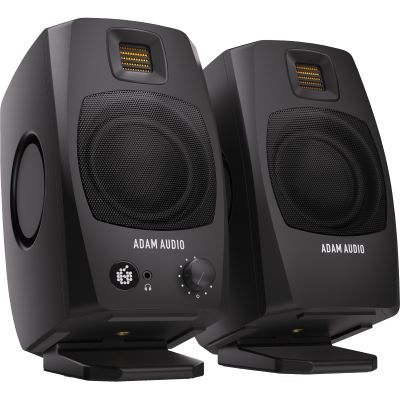

ADAM Audio D3V Schwarz

The ADAM Audio D3V is a fully active desktop monitor system designed for composers, producers and music lovers who want to enjoy ADAM Audio's sound quality as comfortably as possible. Available in white or black, the active monitors feature the legendary gold-colored ribbon tweeter and remain true to ADAM Audio's established German industrial design.

Each active speaker pair features 3.5-inch aluminum woofers and a ferrite magnet system powered by 80-watt amplifiers. The bass-midrange drivers are complemented by double-sided 3.5-inch passive radiators, giving the ADAM Audio D3V an extended frequency response down to 45 Hz.

With 25 years of experience in the design and manufacture of ribbon tweeters, ADAM Audio has designed the compact 1.5-inch D-ART (Desktop Accelerated Ribbon Tweeter). It enables the precise, unagitated high-frequency reproduction for which the manufacturer's established monitors are renowned.

The ADAM Audio D3V has a USB-C input. Accordingly, the monitor system behaves like a digital output device when connected to a computer and does not require an additional audio interface for playback. This plug-and-play functionality also extends to mobile devices, so that high-quality sound reproduction can be enjoyed without the data compression or conversion typically associated with such connections. The ADAM Audio D3V also features balanced 6.35 mm TRS inputs for conventional analog audio applications.

The rear of the left speaker has a series of user-friendly switches to solve the typical acoustic problems arising from speaker placement. The front panel also features a headphone jack and a volume control that simultaneously controls audio input selection, muting and other functions.

The ADAM Audio D3V comes complete with detachable monitor stands, which are tilted at an angle of 15° in the direction of the user's ears. In addition, there is a standardized 3/8-inch thread on the bottom of both monitors for mounting on microphone stands.

Features:

• Color: Black

Each pair of speakers has:

• 3.5-inch aluminum woofers driven by 80-watt amplifiers, complemented by dual-sided 3.5-inch passive radiators.
• Frequency response up to 45 Hz.

STUDIO SOUND FOR YOUR DESK

• Fully active 3.5-inch aluminum bass-midrange driver with ferrite magnet system.
• State-of-the-art Klippel measurement system minimizes distortion and ensures linear drive.
• One-piece concave cone made of thick aluminum for uncolored sound.

D-ART tweeter

• 1.5" desktop accelerated ribbon tweeter, hand-folded and bonded to 40 W amplifiers.
• High-precision crossover controlled by a signal processor.

Passive radiator

• Double-sided passive radiators amplify the low frequencies and increase the sound pressure of the overall system.

USB-C direct input

• Plug-and-play USB-C input that treats the speakers like a digital output device.
• High-quality audio playback without data compression or conversion.

DSP room acoustics

• Three switches to adapt to acoustic problems: "POSITION", "DESK" and "ROOM".

Balanced analog inputs

• Enables connections to audio interfaces, synthesizers, drum machines and DJ mixing consoles.

Headphone output and monitor stand

• Front headphone output automatically takes over audio playback.
• 15° angled monitor stand and 3/8" thread for mounting on microphone stands.

Injection molded housing

• High-quality ABS injection-molded polycarbonate with thick walls to prevent vibrations.
• Rounded shape reduces sound diffraction at high frequencies.

Scope of delivery

• 1x D3V right speaker
• 1x D3V left speaker
• 2x D3V angled stands
• 6x D3V desktop pads
• 1x 2m speaker link cable
• 1x D3V PSU and power cable
• 1x 1m USB-C to USB-C cable
• 1x USB-C to USB-A adapter
• Quick start guide and safety and warning instructions

Technical specifications

• Frequency response @ -3 dB: 48 - 22.6k Hz
• Max SPL: 92 dB SPL
• Crossover frequency: 4.0 kHz
• Woofer diameter: 3.5"
• Tweeter type: D-ART
• Analog connections: 2 x Balanced 6.3 mm jack
• Digital connection: USB Type C
• Headphone output: 3.5 mm TRS mini-jack
• Total power: 60 W max.

Specs:

• Color: Black
• Woofer: 1 x 3,5
• Frequency Range from: 48 Hz
• Frequency Range to: 26000 Hz
• Set Offer: no
• Number of paths: 1-way
• Type: Studio Monitor
• Theme: Recording and Studio
