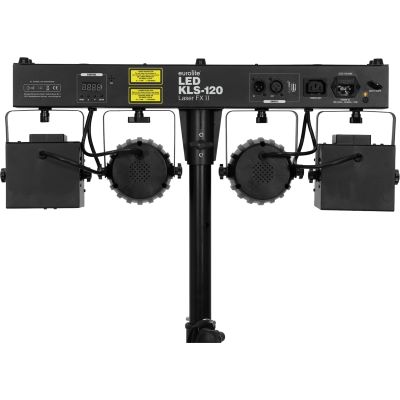

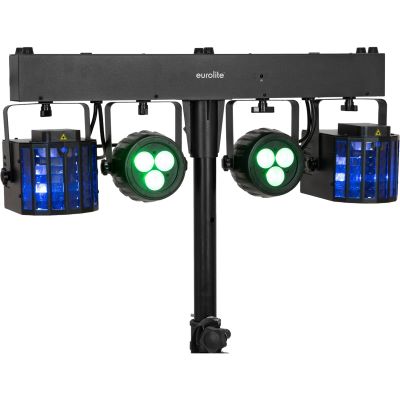

EUROLITE LED KLS-120 Laser FX II Kompakt-Lichtset

The EUROLITE LED KLS-120 Laser FX II compact light set is a compact light effect bar with 2 laser diodes, which prjizieren red and green laser beams, 2 rotating derbies for mirror ball effects and 2 LED spots. With 4.3 kg, the light set is an absolute lightweight and best suited for mobile use.

Features:

• Crossbar with integrated DMX controller and tripod sleeve.
• Ultralight, ideal for mobile use
• Suitable for mounting on a speaker stand (not included) or a crossbar
• Comes pre-assembled with convenient carrying bag
• 2 laser diodes project thousands of red and green laser beams
• Laser class 2M: requires no additional protective measures or the appointment of a laser safety officer
• 2 rotating derbies for mirror ball effects with 4 bright 3W RGBW LEDs each
• 2 spots with 3 bright COB 8W RGBW LEDs each (4in1)
• Auto, music, master/slave and DMX mode
• 7 integrated auto and music show programs
• Direct color selection for 15 preset colors
• Stepless color mixing, color change, color fade, dimmer and strobe effect
• Sound control via built-in microphone with sensitivity control
• Supports QuickDMX - the wireless DMX system from Eurolite
• Built-in phantom powered USB port for QuickDMX receiver (accessory)
• 3, 13 or 25 DMX channels selectable
• Addressing and setting via control panel with 4-digit LED display
• Convenient wireless control via included IR remote control EUROLITE IR-7
• Additional rubber feet if the spot is to be placed on the floor
• IEC terminals for power connection of up to 8 devices
• Switching power supply for operation between 100 and 240 volts
• LED: Wash effect each with separate control 3 x COB (chip-on-board) 8 W 4in1 QCL RGBW (homogeneous color mix)
• LED: multi-beam effect each with separate control 4 x high-power 3 W RGBW
• Can be operated in 3; 13; 25 CH mode
• The unit is cooled by passive convection
• Control via DMX; IR remote control; stand-alone; QuickDMX via USB (optional); sound to light via built-in microphone; master/slave function
• Flicker-free projection

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 40 W
• IP classification: IP20
• Protection class: Class I
• Mains connection: Power input: IEC plug (M) mounting version power cord with grounding plug
• Power output: IEC plug (F), mounting version
• Fuse protection: Device protection fuse 5 x 20 mm, T 1 A fuse replaceable
• Lamp type: LED lamp
• LED: wash effect with 3 x COB (chip-on-board) 8 W each 4in1 QCL RGBW (homogeneous color mixing), multibeam effect with 4 x high-power 3W each RGBW
• Laser class: Class 2M
• Laser color: RG
• Laser module: R red 40 mW, G green 14 mW
• DMX channels: 3; 13; 25
• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Passive convection
• Control: DMX; IR remote control; stand-alone; QuickDMX via USB (optional); sound to light via built-in microphone; master/slave function
• Beam angle: 18
• beam angle (1/2 tip): 18°
• Beam angle (1/10 peak): 34
• Housing color: Black
• Display type: 4-digit 7-segment LED display
• Dimensions: Width: 62.5 cm
• Depth: 15.5 cm
• Height: 22.9 cm
• Weight: 4.3 kg

Remote control:

• Battery: 1 x button cell 3.0 V CR2025 lithium-manganese (included).

Legal requirements:

• Special product: Not suitable for household room lighting.
• Intended use: Show effect lighting

Instruction manual / Safety instructions:

• Manual (3.96 MB)
