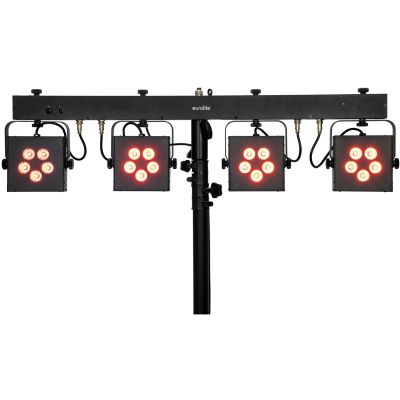

EUROLITE LED KLS-902 Next Kompakt-Lichtset RGB/WW

With the KLS-902 Next, Eurolite presents the next stage of the compact light evolution: With bright spots and RGB+WW colour mixing.

Proven concept, modern implementation

The same as with the previous KLS models is the proven combination of 4 spots on one bar. The LEDs are now the most modern versions: 20 pieces with 7 watts each and a high efficiency provide a decent light output.

Silent and flexible

But also the hardware has changed a lot: For example, the brackets of the individual spots are now even more massive and the power cable is also significantly longer than before. The bar can now also be mounted on the fly (for example on a truss). The connectors for this can be attached in seconds with quick-release fasteners. Despite the high light output, the system does not need a fan, so it is absolutely noiseless and does not suck in dust. Further effects can be screwed onto the bar, for the power connection of these two IEC sockets and a Powercon output are available.

Control

If you want to control your system via wireless DMX, you will be happy about the new USB socket. A Quick-DMX receiver can easily be plugged in here. Those who want to work without an external controller will be happy about the many well thought-out stand-alone programs. In addition, a static colour can now be set separately for each spot for use without a controller. The included carrying bag is particularly robust and makes the system easily transportable.

Features:

• DMX lighting system with four super-flat LED spots
• 5 powerful 7W RGB/WW LEDs (4in1) per spot
• Individual color and brightness adjustment for each spot directly at the unit possible
• New designed software with attractive programs
• Absolutely lightweight, ideally suited for mobile use
• Crossbar with integrated DMX control unit and TV spigot for tripod mounting
• Fast truss mounting due to Omega bracket with Quick-Lock connectors
• Spots individually alignable and with 16° beam angle
• Supplied pre-assembled in practical transport bag with IR remote control
• Auto, music, colour, master/slave and DMX mode
• 20 integrated show programs in auto and music mode
• Addressing and settings via control unit with 4-digit LED display
• Phantom powered USB socket for QuickDMX receiver (accessory)
• Mounting points and power outputs for additional devices
• Wireless footswitch available as an option
• P-Con power connections for easy interconnection of up to 8 units
• LED: Spot 4 individually controllable 5 x high-power 7 W 4in1 QCL RGB/WW (homogeneous colour mixing)
• Can be operated in 3; 4; 6; 8; 16; 20; 18 CH DMX mode
• Passive convection cooling for fixture cooling
• Can be controlled via DMX; stand-alone; music control via microphone; radio foot switch (optional); QuickDMX via USB (optional); IR remote control (included)
• Is already pre-programmed in the EASY SHOW; LED EASY OPERATOR DELUXE
• For application areas such as: small rental; rental company; wedding/gala

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 125 W
• Protection class: IP20
• Power connection: Power supply P-Con (blue), built-in version Power connection cable with safety plug (included)
• Construction cable: 3 x 1.0 mm² H05VV-F
• Cable length: 3 m
• Power output: 2 x IEC (W) built-in version, 1 x P-Con (grey), built-in version
• Fuse: device fuse 5 x 20 mm, T 2 A fuse replaceable; mains output fuse per channel 5 x 20 mm, T 5 A fuse replaceable
• Battery: 1 x button cell 3.0 V CR2025 lithium-manganese
• Lamp type: LED lamp
• LED: spot 5 x high-power 7 W 4in1 QCL RGB/WW (homogeneous colour mixing)
• DMX channels: 3; 4; 6; 8; 16; 20; 18
• DMX input: 3-pin XLR (M) built-in version
• DMX output: 3-pin XLR (W) built-in version
• Cooling: Passive convection cooling
• Control: DMX; stand-alone; music control via microphone; radio foot switch (optional); QuickDMX via USB (optional); IR remote control (included); EASY SHOW; LED EASY OPERATOR DELUXE
• Beam angle: 16
• beam angle (1/2 Peak): 16°
• beam angle (1/10 peak): 32°
• Housing colour: Black
• Mounting system: TV spigot Ø 28mm
• Dimensions (LxWxH): 6 cm x 1.08m x 28cm
• Weight: 9,80 kg
