Neural DSP Nano Cortex

Neural DSP Nano Cortex - Compact multi-effects pedal with professional sound quality

The Neural DSP Nano Cortex is a revolutionary multi-effects pedal for electric guitarists looking for the highest sound quality in an extremely compact format. Based on the groundbreaking technology of the Quad Cortex, the Nano Cortex offers the same high-resolution recreation of amps, cabinets and effects - but in a package that fits in any pocket.

With up to 64 storable presets and 256 neural captures, the pedal is ideal for stage, studio and rehearsal room. The Cortex Cloud provides access to a huge selection of high-quality captures from amplifiers, speaker cabinets and effects pedals - including the option to create your own signal chains and share them with the community. For guitarists who want to combine uncompromising sound, flexibility and mobility, the Nano Cortex is the perfect choice.

Neural DSP - Leading the way in digital guitar technology

In recent years,Neural DSP has established itself as one of the most innovative manufacturers in the field of digital guitar technology. With software solutions such as Archetype and the Quad Cortex hardware model, the brand has taken the market by storm - known for excellent fidelity, intuitive operation and modern signal processing.

The Nano Cortex is the logical continuation of this philosophy: uncompromising sound quality, intelligent functionality and a well thought-out design - all in a portable format. Whether in a live setup, in the home studio or as a backup solution on tour - the Nano Cortex always delivers reliable results at the highest professional level.

Technical details of the Neural DSP Nano Cortex

The pedal offers 7 dedicated effect blocks for maximum sonic flexibility: two pre-FX blocks (Adaptive Gate & Transpose), three post-FX blocks (Chorus, Analog Delay & Mind Hall Reverb), a Neural Capture block for authentic amp replication and an extended IR loader for individual speaker simulations.

10 high-quality IRs (Impulse Responses) are already installed ex works, each of which can be combined with 5 microphone options and 6 microphone positions. In addition, up to 256 of your own IRs can be imported and used. The true bypass ensures that the original signal remains unaffected when switched off.

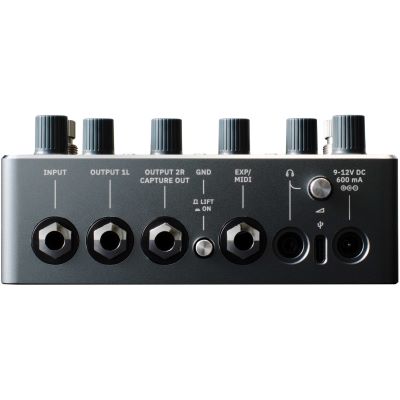

The extensive range of connections guarantees compatibility with almost any studio or stage situation. These include a classic guitar input (6.3 mm jack), two stereo outputs (1L & 2R/Capture), a Capture input as an XLR/jack combo socket, a 3.5 mm headphone output, an expression/MIDI port and a USB-C port for communication with the Cortex Cloud and for power supply.

Operation is via rotary controls for gain, bass, mids, treble, amount, level and headphone volume. Additional push buttons such as Exit, Capture, Save, Bank, FX, Ground Lift and Boost allow quick navigation and function access. Two footswitches (I & II) allow you to quickly switch between presets and activate effects during live performances.

The housing of the Nano Cortex measures a compact 144 x 103 x 62 mm and weighs just 620 g. Power is supplied either via USB-C or a 9-12V DC mains adapter (not included). Battery operation is not possible.

Why the Neural DSP Nano Cortex is the ideal choice

The Neural DSP Nano Cortex brings studio quality to your pedalboard - in a format that can be taken anywhere. The ability to capture, store and share complete amp and effects sounds in detail opens up creative freedom for guitarists like never before. With integration into the Cortex Cloud, you have a huge library of sound profiles at your disposal - accessible and editable at any time via the free app.

For guitarists who want maximum flexibility, ease of use and uncompromising sound quality, the Nano Cortex is a modern power tool. Whether as a central multi-effects device, as a recording interface or as a compact backup - the pedal impresses in every role.

With its high build quality, intuitive user interface and integration of the latest DSP technology, the Nano Cortex takes the playing and sound experience to a new level.

Features:

• Multi-effects pedal with neural capture technology
• 64 presets & up to 256 storable neural captures
• 10 pre-installed IRs with 5 microphone options & 6 microphone positions
• Support for up to 256 user-defined IRs
• 7 effect blocks: 2 pre-FX, 3 post-FX, 1 neural capture, 1 IR loader
• True Bypass
• USB-C for power supply & connection to the Cortex Cloud
• Audio input: 6.3 mm jack
• Outputs: 2x 6.3 mm stereo jack (1L, 2R/Capture)
• Capture input: XLR/jack combo socket
• Headphone output: 3.5 mm stereo jack
• Expression/MIDI: 6.3 mm stereo jack
• Controls: Gain, Bass, Mid, Treble, Amount, Level, Headphone Vol
• Buttons: Exit, Capture, Save, Bank, FX, Ground Lift, Boost
• Footswitch: I, II
• Power supply: USB-C or 9-12V DC (not included)
• Dimensions (W x D x H): 144 x 103 x 62 mm
• Weight: 620 g
• No battery usage possible
• Free access to thousands of neural captures via the Cortex Cloud

Specs:

• Color: Grey
• Effect Type: Multi-Effects Pedal
• Type: digital Effects Processor
• Theme: Guitars and Basses
