Zoom MS-70 CDR+

The Zoom MS-70CDR+ offers musicians a versatile modulation center with 149 high-quality effects, including chorus, delay and reverb. With the ability to use up to 6 effects simultaneously, musicians can customize their sound and create unique soundscapes. Thanks to its robust design and flexible power supply options, the MS-70CDR+ is ideal for live performances. With the integrated MIDI interface and the Handy Guitar Lab app, users can easily control their effects and expand their sound selection. The MS-70CDR+ is the perfect choice for musicians looking for a compact and powerful effects processor.

Features:

• Over 140 guitar and bass effects, including modulation, chorus, delay and reverb
• Use up to 6 effects at the same time
• 100 patch memory locations with 80 presets
• Analog circuitry with minimal sound degradation
• Single stompbox design
• Stereo input and output support effects such as stereo chorus and delays
• 4x cross key switches (MEMORY / SCROLL) for easy operation with the foot
• Improved user interface for easier navigation and control
• Color-coded LCD backlight for the selected effect category

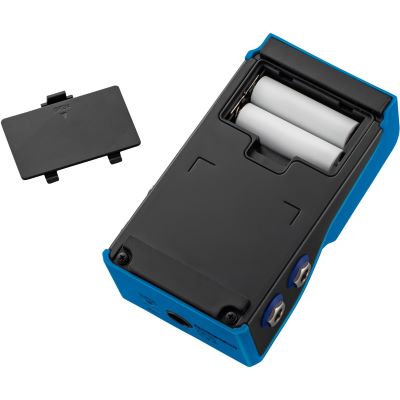

• Powered by 2 AA batteries or AC adapter

Technical specifications:

• Maximum number of simultaneous effects: 6 effects
• User patch memory: 100
• Sampling frequency: 44.1 kHz
• A/D conversion: 24-bit 128x oversampling
• D/A conversion: 24-bit 128x oversampling
• Signal processing: 32-bit
• Frequency response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (with 10 kΩ load)
• Display: 160 × 128 dot matrix LCD
• Inputs: L/R standard mono jack sockets; nominal input level: -20 dBu; input impedance (line): 470 kΩ; input S/N: 122 dB
• Outputs: L/R standard mono jack sockets; maximum output level: +7.2 dBu (if output impedance 10 kΩ or higher)
• Noise floor (residual noise): L/R -100 dBu
• Power supply: AC adapter: 9V DC 500mA center negative (ZOOM AD-16 optional); 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries); estimated operating times when using batteries; NiMH batteries (1900 mAh): approx. 6.5 hours (approx. 5 hours when using stereo input); lithium batteries: approx. 14 hours (approx. 10 hours when using stereo input)
• USB connection: USB 2.0 Type-C / Supported cable type: Type-C; Handy Guitar Lab: USB 1.1 Full speed
• Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
• Weight: 368 g (without batteries) 415 g (including batteries)
• Note: 0 dBu = 0.775 V

Specs:

• Color: Blue
• Effect Type: Multi-Effects Pedal
• Type: digital Effects Processor
• Theme: Guitars and Basses
